Trexonn Physical Properties & Performance

Physical Properties:

PROPERTY	UNIT	TEST METHOD	VALUE
PROPERTY	UNIT	TEST METHOD	STANDARD	HEAVY DUTY
01. Density	gm/cc	ASTM – D – 792	3.1	3.9
02. Tensile Strength	kgf/cm2	ASTM – D – 638	140	125
03. Elongation	%	ASTM – D – 638	150	125
04.Compressive Strength	kgf/cm2	ASTM – D – 695	90	120
05. Deformation Under Load (Permanent)	%	ASTM – D – 621	6	4
06. Hardness	Shore -D	ASTM – D – 2240	64	70
07. Heat Resistance	OC	Type	– 250 to + 250 OC
08. Limiting PV Value	kg/cm2Xmm	Type	400	600
09. Abrasion Resistance Wear Rate	%	Type	0.1	0.1
10. Dynamic Coefficient of friction	-	ASTM – D – 1894	0.1 to 0.14	0.1 to 0.14
11. Chemical resistance: Excellent resistance to known Petroleum based oils, Greases,Coolants, Cleaning agents up to 250 O C.

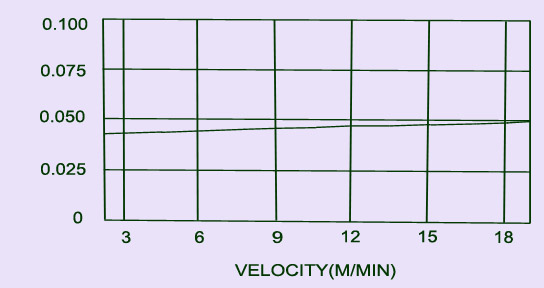

12.a. Coefficient of friction (m)

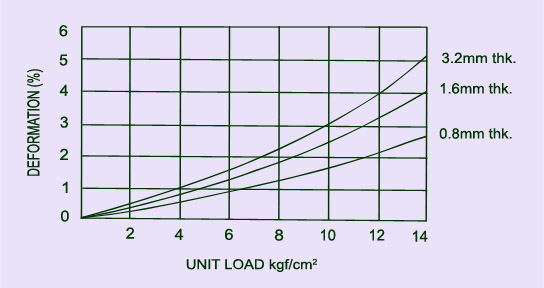

12. b. Deformation Under Load

Performance Guiarantee:

TREXONN : Linear Bearing System is manufactured strictly in accordance with Quality Management System, right from input upto output.
The physical properties of Raw Material as well as finished product are tested at Inhouse Laboratory & put to use for performance testing on Inhouse machines.
Trexonn : Linear Bearing System is manufactured in Technical Association from Isocomp Technologies, Australia and samples / specimens are regularly sent for testing to Principal.
The company is certified ISO 9001:2008 and performance of Trexonn – Linear Bearing System is fool proof.
